Microscope images of Kulicke & Soffa bonder-wedges

We usually use 25 µm aluminum wire.

2004-09-30, Anders L.: We have only one wedge of type W5C, which I think is for aluminum wire. The others (T5G) are probably for gold wire.

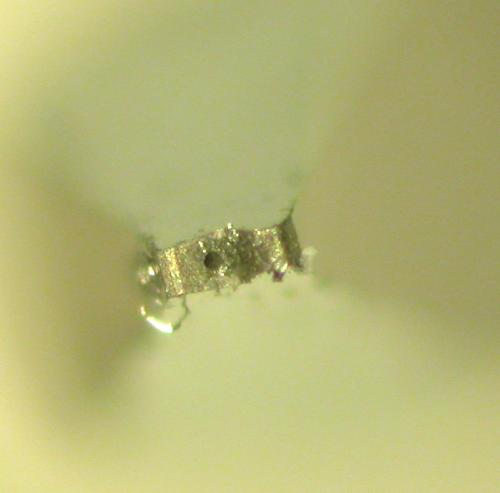

4WNLO-2025-T5G-M00, 300 39914

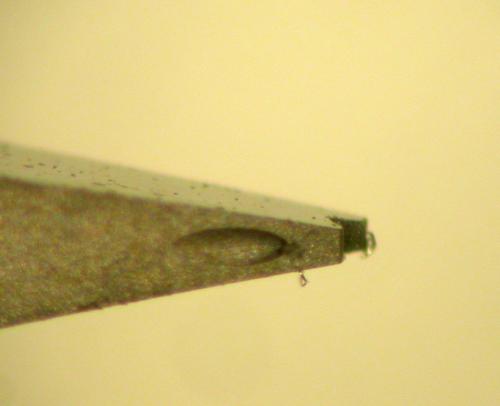

4WNLO-2025-T5G-M00, 300 39914

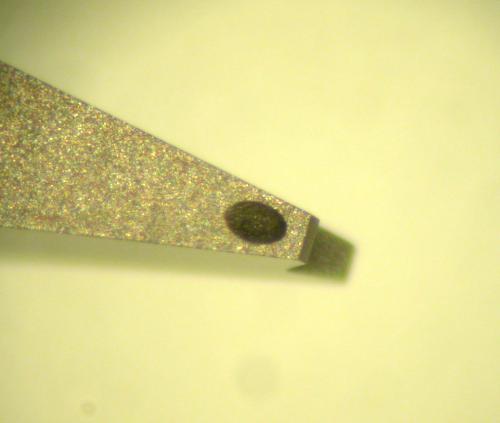

4WNLO-2025-W5C-M00, 271 19714

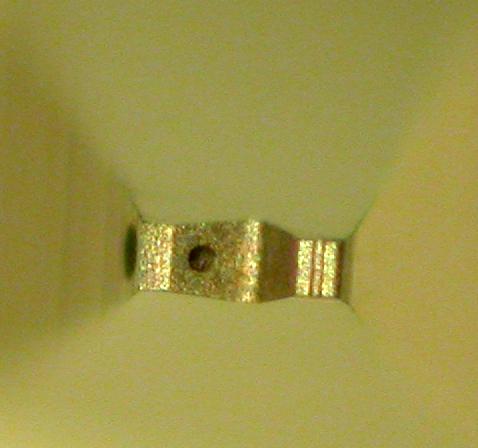

4WNLO-2025-W5C-M00, 271 19714

Anders Liljeborg Nanostructure Physics, KTH.
