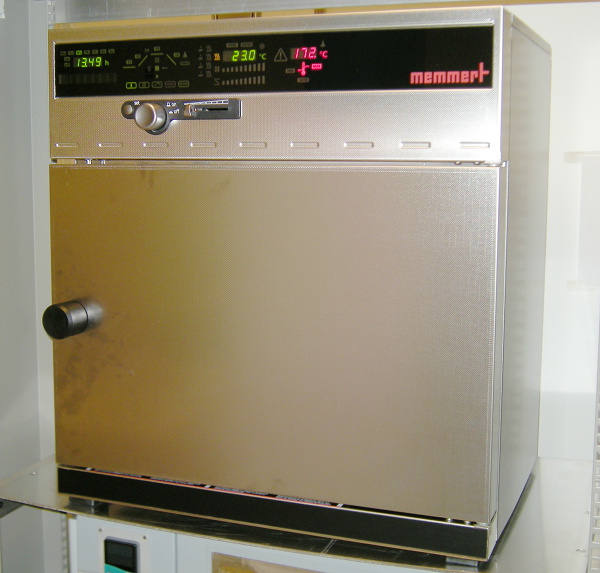

Programmable oven with PID controller using fuzzy logic. Delayed programme start, programmable heating and cooling ramps, set-point-dependent waiting time, repeat (loop) function.

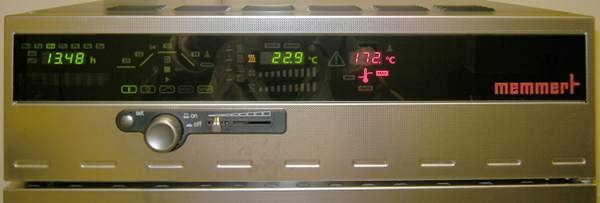

Front panel with time display on, operating mode is
"Normal", heating is on, actual temperature is 22.9°C, monitor
temperature is 172°C (max temperature).
Below are the program SET-knob, the main switch combined with rotation for programming and the air fan controller. For details see the Manufacturers manual (pdf) |
Simplest possible operation:
