Product
Information - Negative Tone Photoresist Series ma-N 1400 and ma-N 400
Conventional Pattern Transfer and Single-Layer Lift-Off
This information courtesy of Micro Resist Technology, Berlin |
Unique Features
- High wet and dry etch resistance
- Good thermal stability of the resist pattern
- Tunable pattern profile: vertical to undercut
- Aqueous alkaline development
- Easy to remove
- Based on safe solvents
- Resists available in a variety of viscosities
|
Applications
- Microelectronics and micro systems technology
- Mask for lift-off processes
- Etch mask for semiconductors and metals
- Well suitable for implantation
|
Technical Data
|
Resist |
ma-N 400 |
µm |
ma-N 1400 |
µm |
|

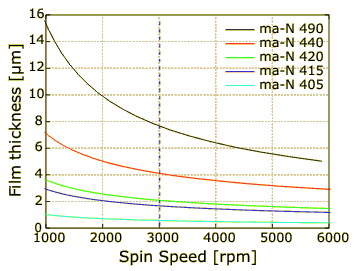

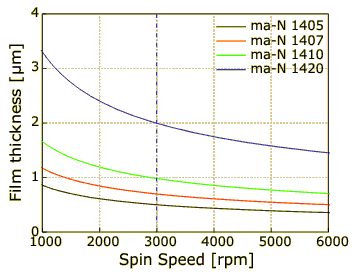

Film thickness |
ma-N
405
ma-N 415
ma-N 420
ma-N 440
ma-N 490 |
0.5
1.5
2.0
4.1
7.5 |
ma-N
1405
ma-N 1407
ma-N 1410
ma-N 1420 |
0.5
0.7
1.0
2.0 |
|
Spin coating / time |
3000 rpm, 30 s |
|

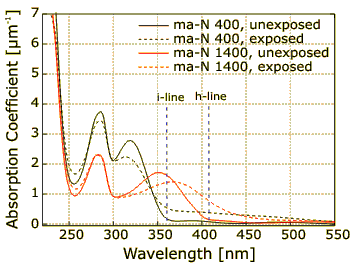

Spectral sensitivity |
300 - 380 nm |
300 - 410 nm |
|
Thermal stability |
up to 110 °C,
for metal evaporation |
up to 160 °C,
for metal evaporation and sputtering |
|
|

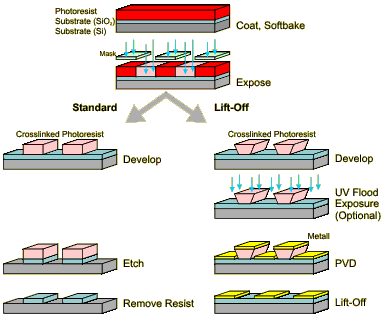

Process flow for standard and Lift-off Processes
|

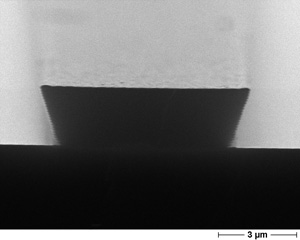

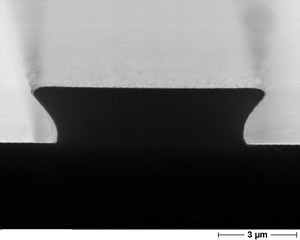

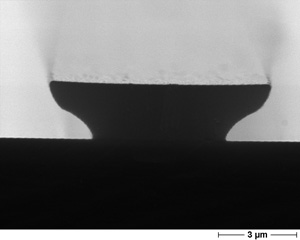

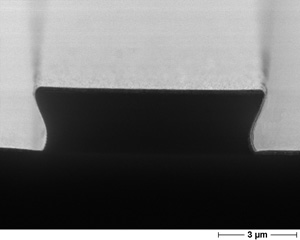

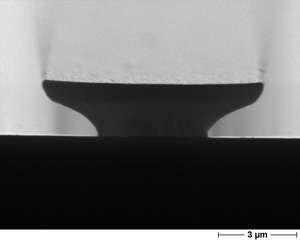

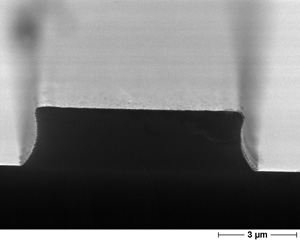

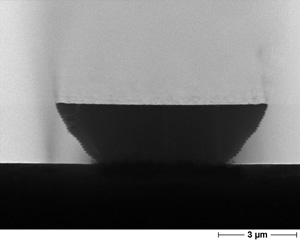

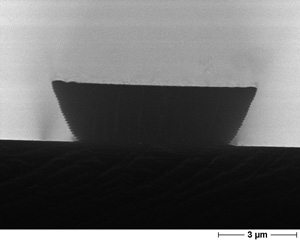

Examples
ma-N
400 Series
|
ma-N
1400 Series |
|
|
tD
90 s, 0 µm undercut |
tD
65 s, 0.6 µm undercut |
|
|
tD
100 s, 0.5 µm undercut |
tD
80 s, 0.8 µm undercut |
|
|
tD
120 s, 1.0 µm undercut |
tD
100 s, 1.7 µm undercut |
|
|
tD
140 s, 1.5 µm undercut |
tD
120 s, 2.1 µm undercut |
|
Development
ma-N 1400 is developed in aqueous alkaline
solutions. ma-D 533/S (metal ion free) by micro
resist technology GmbH is provided for this
process.
ma-N 400 is developed in aqueous alkaline solutions. ma-D 332/S by micro
resist technology GmbH is provided for this
process.
ma-N 405 is developed in aqueous alkaline solutions. ma-D 331/S by micro
resist technology GmbH is provided for this
process.
|
Removal
ma-N 1400 / ma-N 400 can be removed residue-free
after the micro-technological fabrication process.
We recommend our remover mr-Rem 660.
|
Environmental and health protection
All harmful organic solvents in resist and
developer have been substituted by safer solvents.
|
