Responsible: Erik Holmgren, Adrian Iovan
![]() |

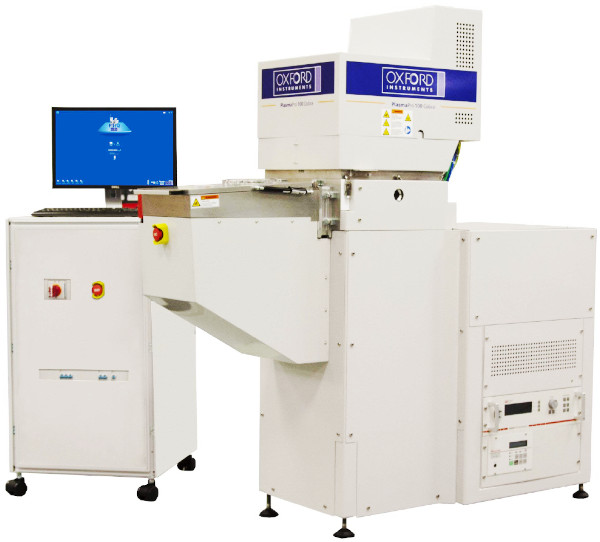

Oxford Instruments Plasmapro 100 Cobra 300 dry etching system with loadlock. Process gases O2, Ar, CF4, CHF3, SF6, C4F8, N2. Configured for 4 inch wafers (capable of up to 8inch with reconfiguration), smaller pieces require mounting on 4 inch sapphire carriers Wide temperature range electrode -150° C up to 400° C with He backside pressure Julabo chiller for -20 up to +70° C operation Plasma power: ICP max 3000 W, table RF max 600 W Process pressure: 1-250 mTorr Manufacturers manual (limited access). Manufacturers Service manual (limited access). Poster - comparison, etching different resists. Electric schematic (Password protected). Training notes (Password protected). Basic plasma etch with examples (Password protected). Etch processing setup and tips / trouble shooting (Password protected). Oxford tutorial for KTH_PP100-Cobra (Password protected). Plasma physics essentials (Password protected). |
