Service, replacement of memory chip, estimate of acceleration
parameter
The memory circuit in the EMS 4000 spinner is a non-volatile RAM
using a
battery, which lifetime is a couple of years. The circuit is a
standard component and can be purchased from
e.g. RS-Components. The circuit part number
is GR881 8K X 8.

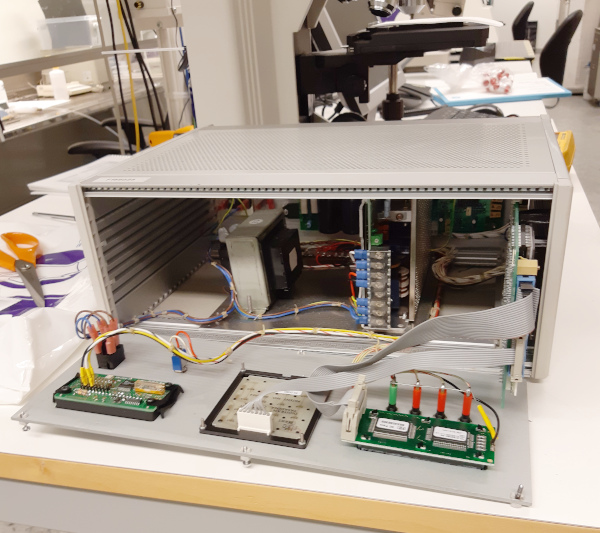

Start by opening the front of the controller unit.

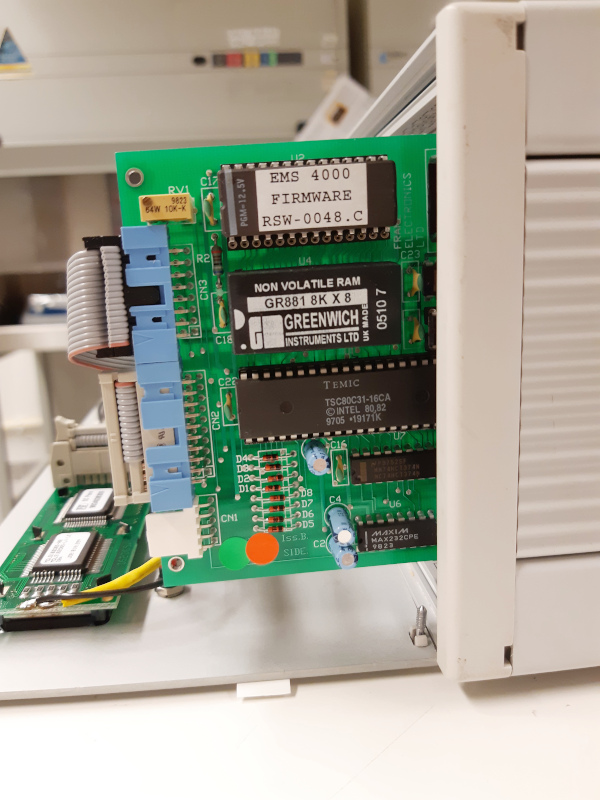

At the far right there is a circuit board
that carries the memory circuit.
- Disconnect the two flat cables at the front of the board.
- Pull out the board partly. Do not pull it out all the
way! The board has a
back connector that is not fastened to the chassis, the
cabling is following it.
- See to it that your are grounded, have no static charge
- Carefully pry the old memory circuit loose with a
screwdriver or
something similar.
-
Press the new circuit into the holder, carefully check that
all pins go into the correct sockets.
-
Press hard to ensure that the new circuit is correctly
seated.
-
Re-attach the front panel.

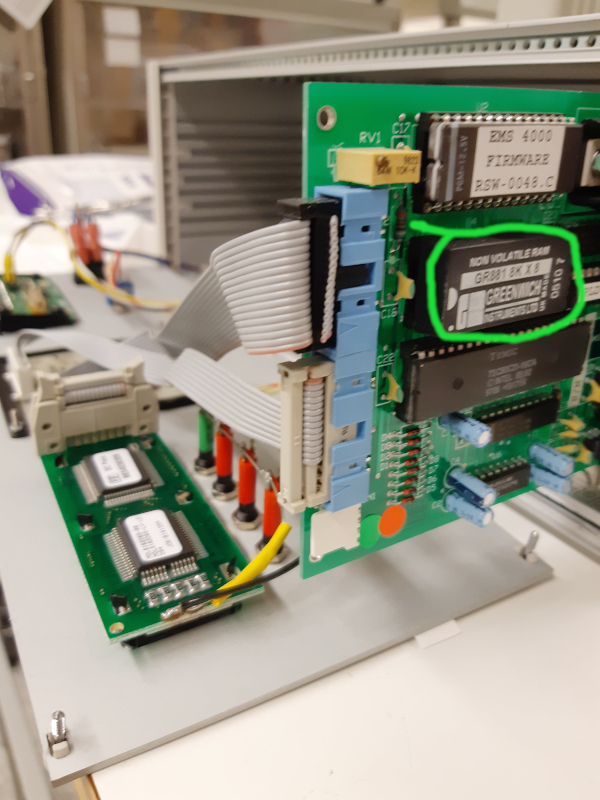

The circuit board and memory circuit from a different angle.
Anders Liljeborg
Albanova Nano Fabrication Lab
